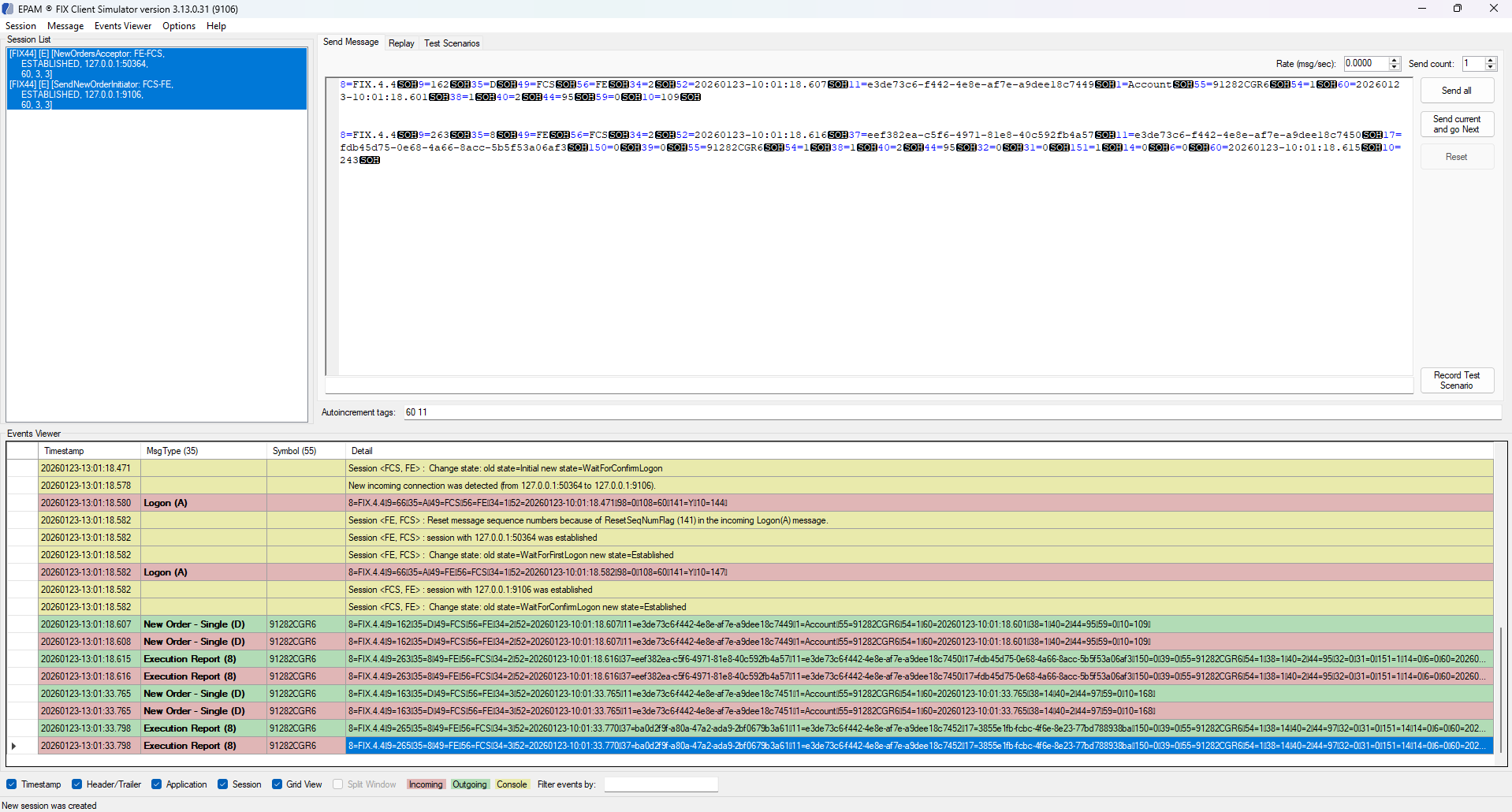

EPAM B2BITS FIX Client Simulator is a rich desktop UI
application. It allows to simulate multiple FIX-protocol-defined
buy-side- and sell-side-oriented workflows and empowers users to
create and run repeatable test scenarios for FIX sessions.
FCS combines the ability to enter, generate,
and edit raw FIX messages via pre-defined forms. Moreover, it

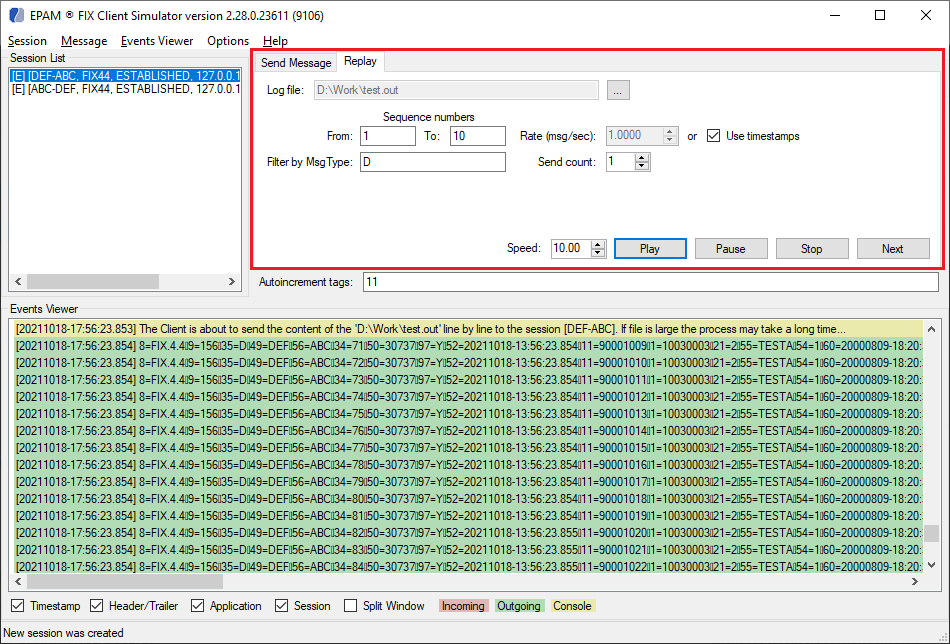

offers an approach to assemble and replay FIX messages, handle
sequence numbers and identities automatically.
FCS is used in the following use cases:
- OMS/EMS functional and stress testing
- FIX sessions automated testing
- FIX protocol implementations
- Errors reproducing
FIX Client Simulator covers the entire spectrum of FIX protocol
versions, supports custom FIX protocol extensions and
QuickFIX-formatted dictionaries. It is integrated with B2BITS'
FIXopaedia serving as a reliable specifications source and
guaranteeing strict adherence to FIX protocol
compliance.

Features
A short introduction video to FIX tools, including the FIX
Client Simulator, can be found here.
Feature |
Description |
FIX standard
support |
FIX Client Sumulator ensures FIX standard
compliance by supporting:
- OMS/EMS functional and stress testing
- FIX 4.0 - FIXT 1.1 session-level FIX versions
- FIX 4.0 - FIXLatest application-level FIX versions
-
Custom FIX protocol extensions
- QuickFIX-formatted dictionaries
- All FIX message types (pre-trade, trade, post-trade and market
data)
- FIX messages validation (wellformness, required and optional
fields, fields order, types, etc.)
- Session Qualifier support for identifying different sessions
with the same SenderCompId and TargetCompId

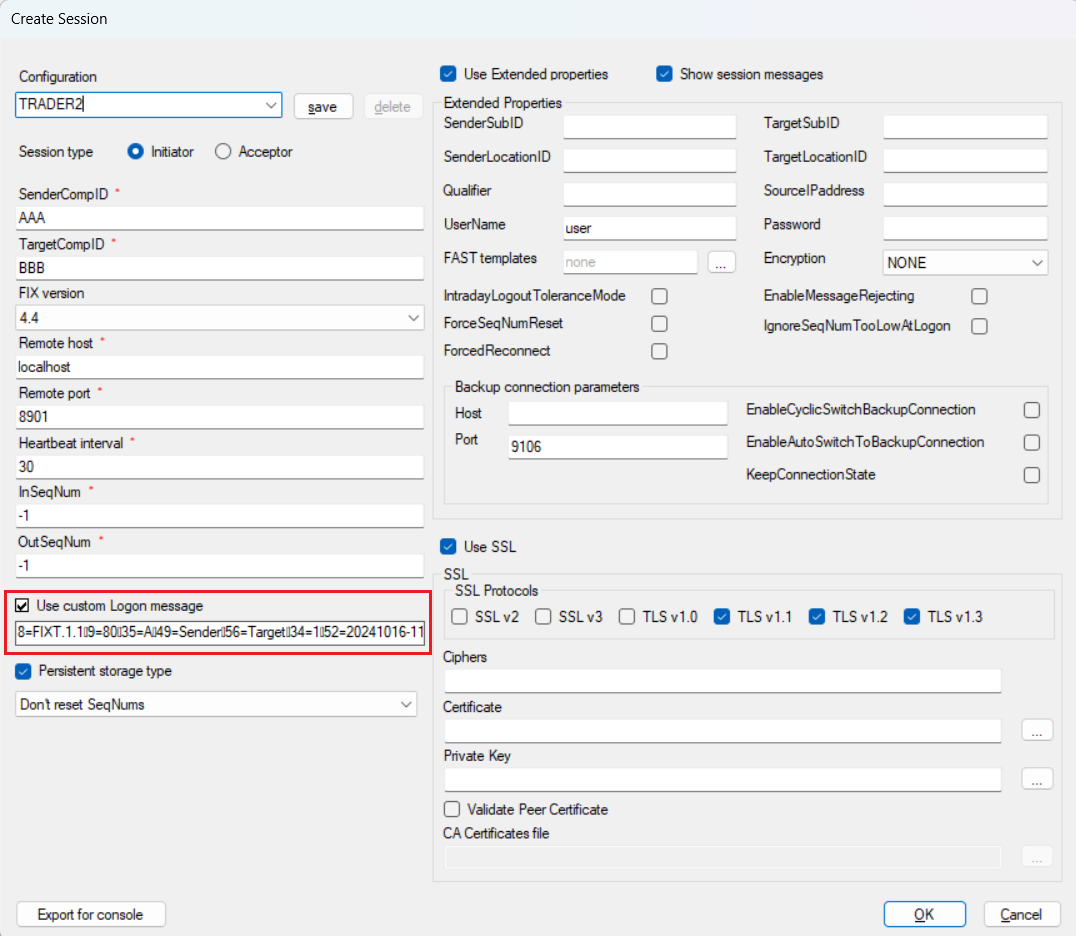

- Custom Logon messages
- High-presision timestamps in accordance with MiFID II
requirements
- Custom symbol instead of SOH
|

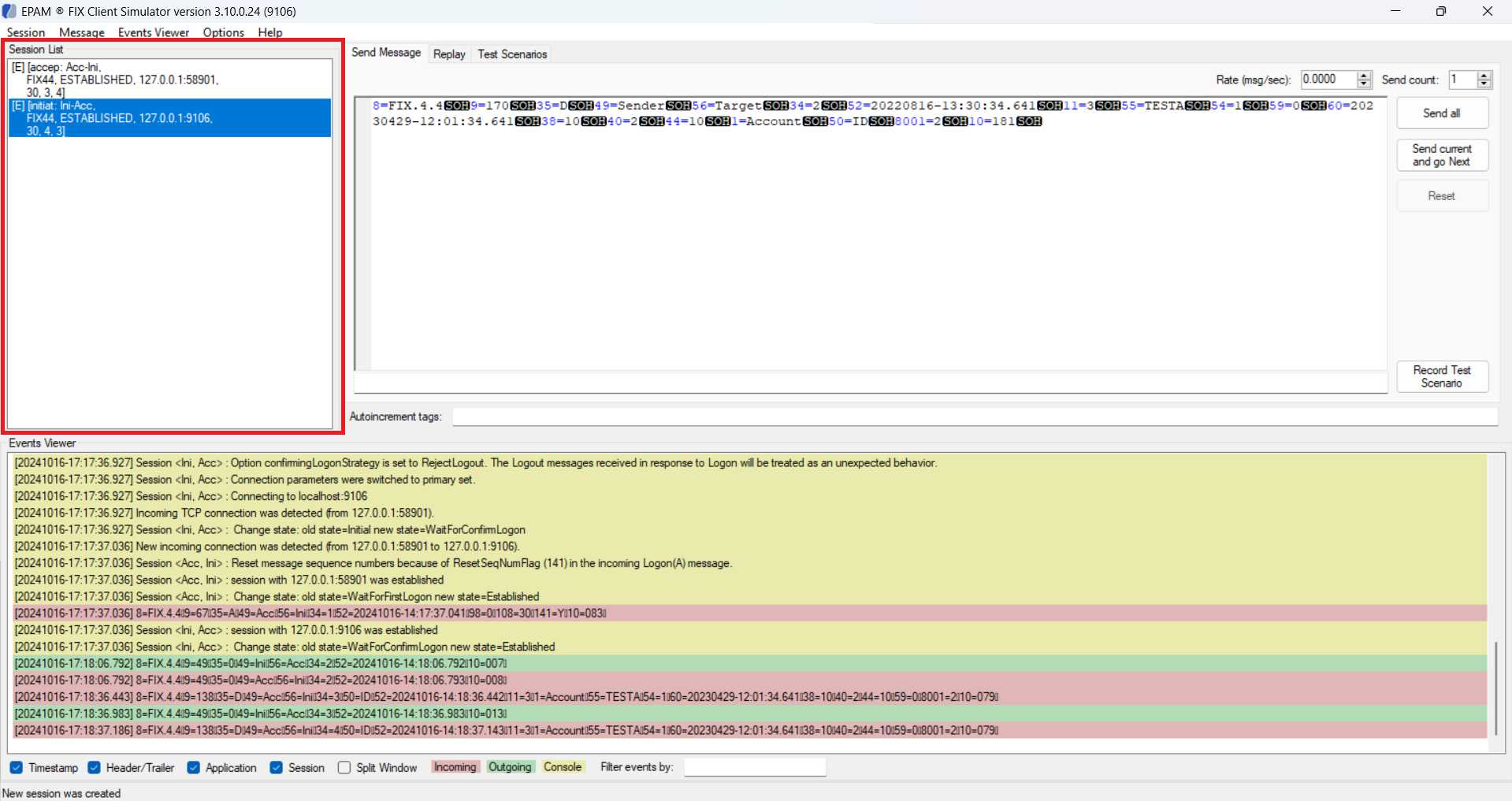

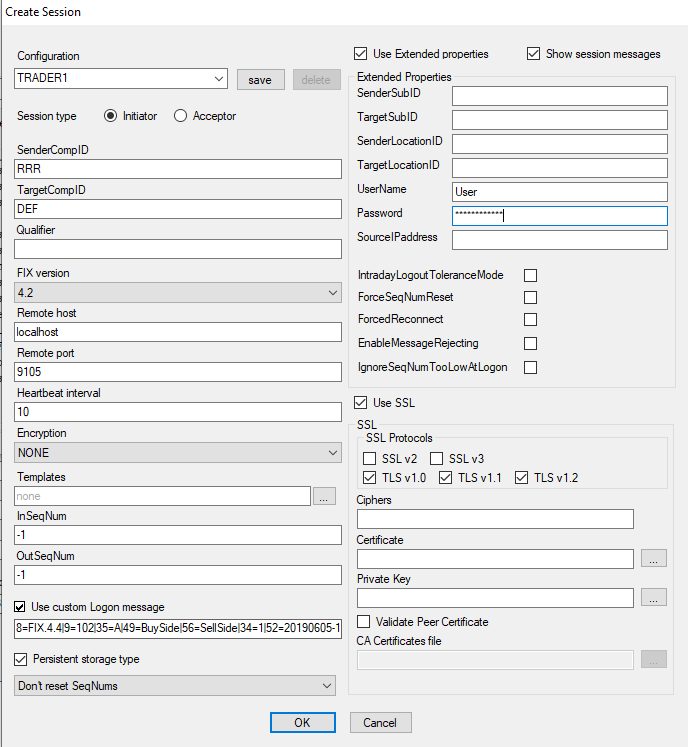

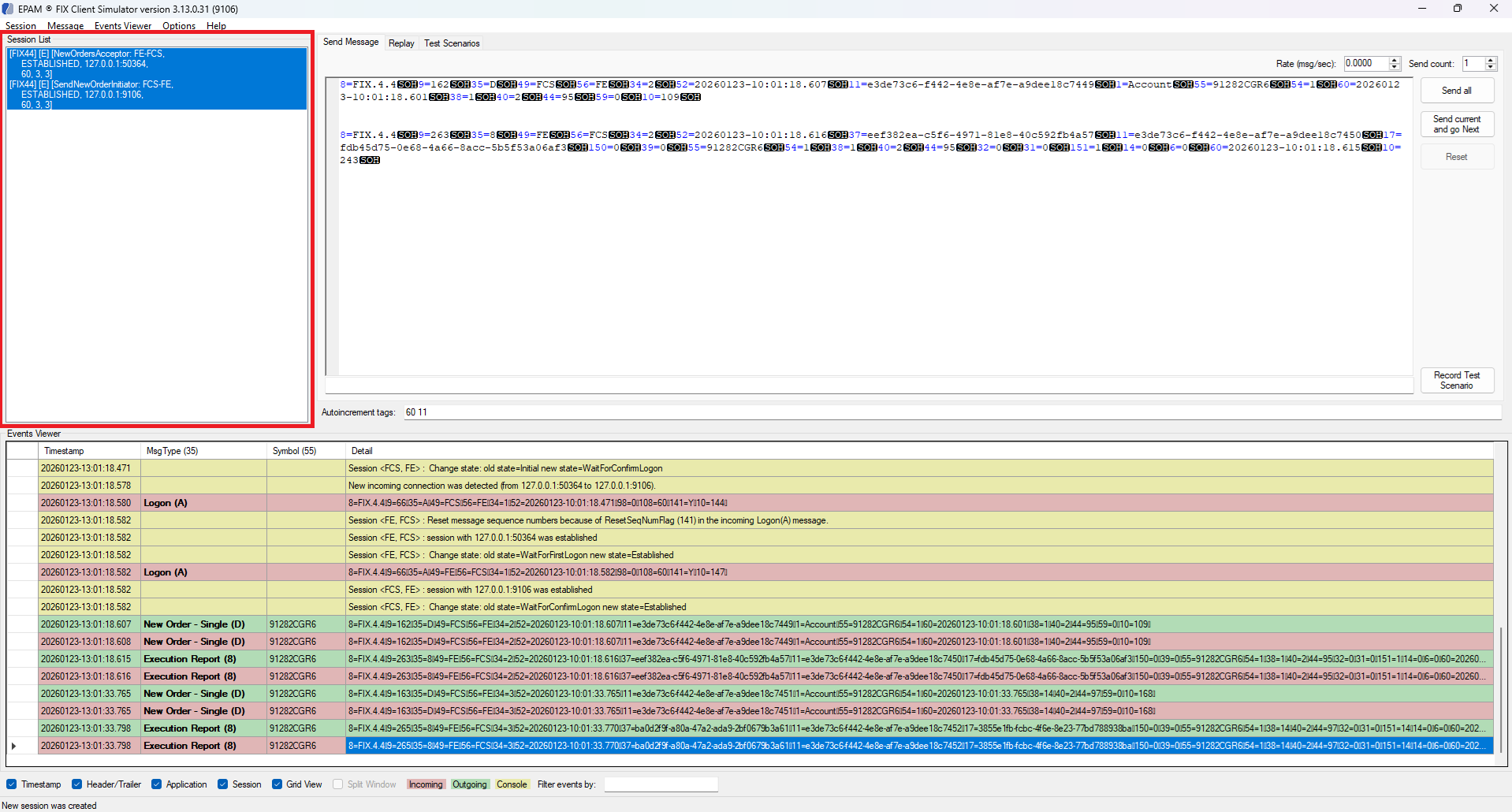

Session
management |
-

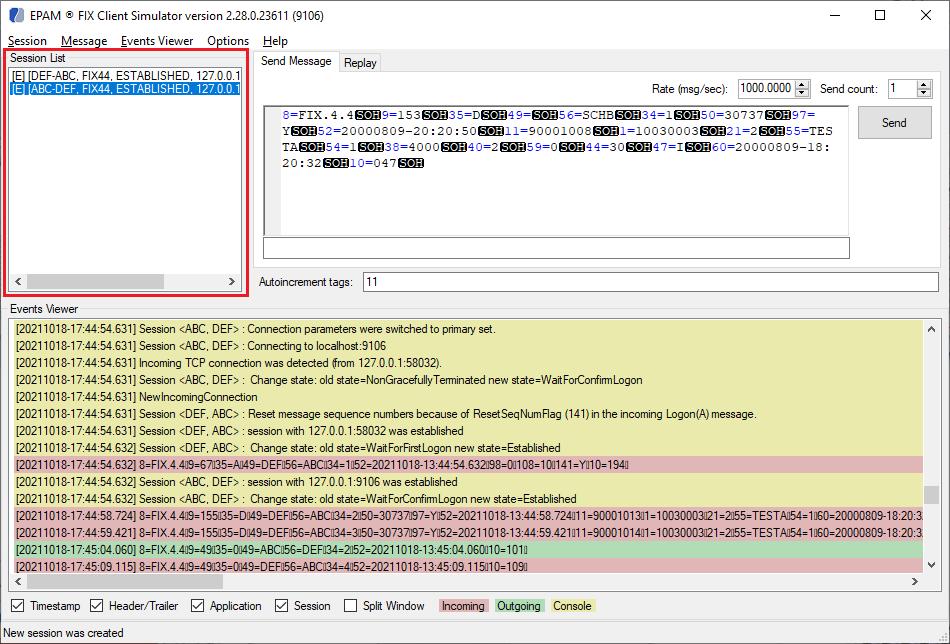

Create, configure and run up to 1000 acceptor and initiator
sessions
- Add acceptor sessions for arbitrary initiators (unregistered
acceptor sessions)
-
Set and reset incoming and outgoing sequence numbers for FIX
sessions
-
Save session configuration to restore it after
disconnection
-
Restore logs after FIX session restart
-
Close running sessions
|
FIX messages
handling |
|
Context-driven workflow
simulation |
-
Automatiacally generate Order Cancel Request (35=F) and
Order Cancel/Replace Request (35=G) messages for the selected
outgoing New Order Single (35=D) and incoming Execution Report
(35=8) messages
-
Automatiacally generate New, Partially Filled, and Filled
Execution Report (35=8) messages for the selected incoming New
Order Single (35=D) messages
|

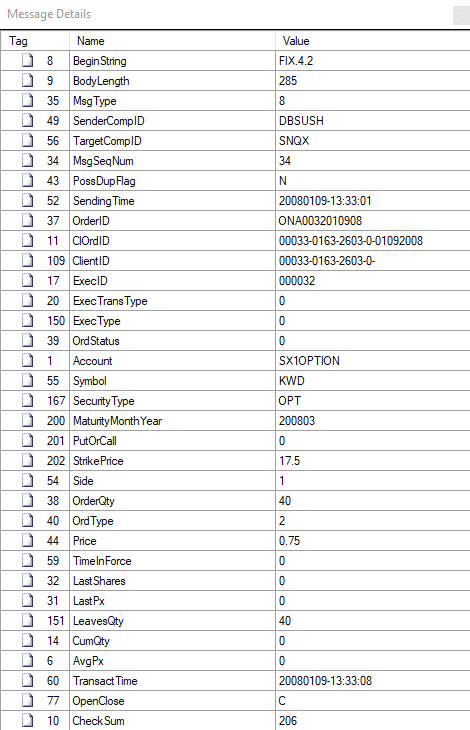

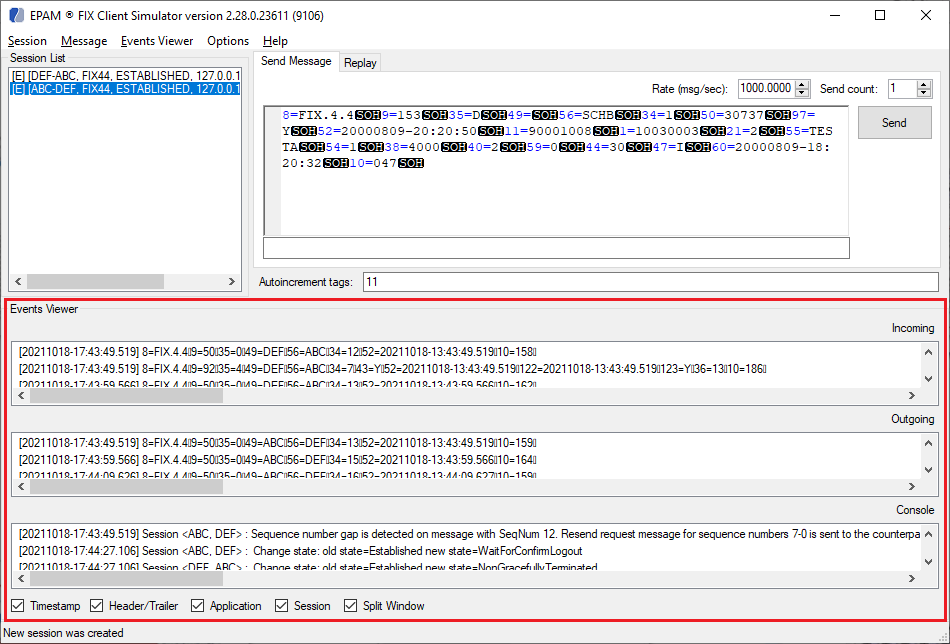

Tests visualization |
-

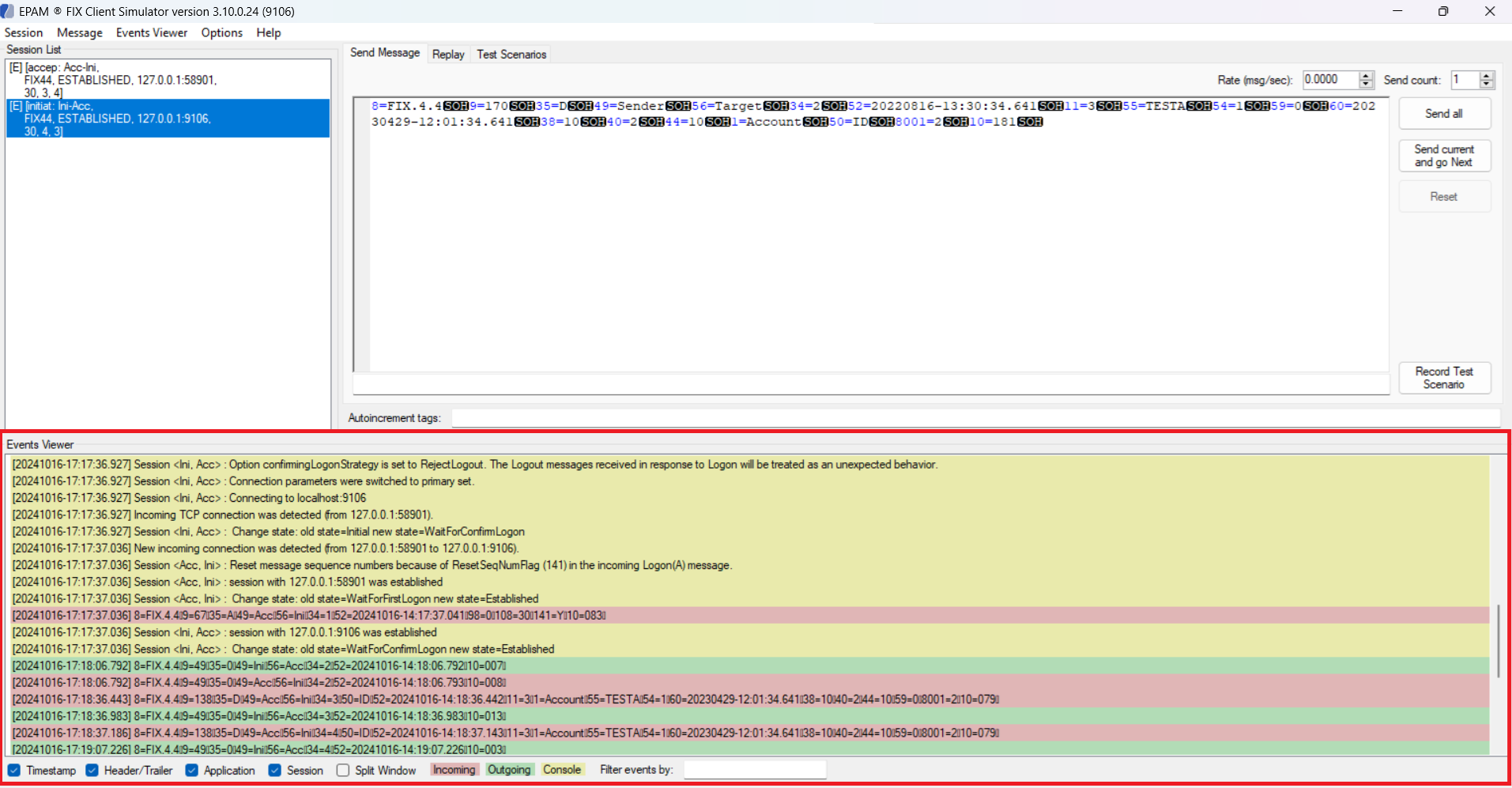

Log all incoming and outgoing messages

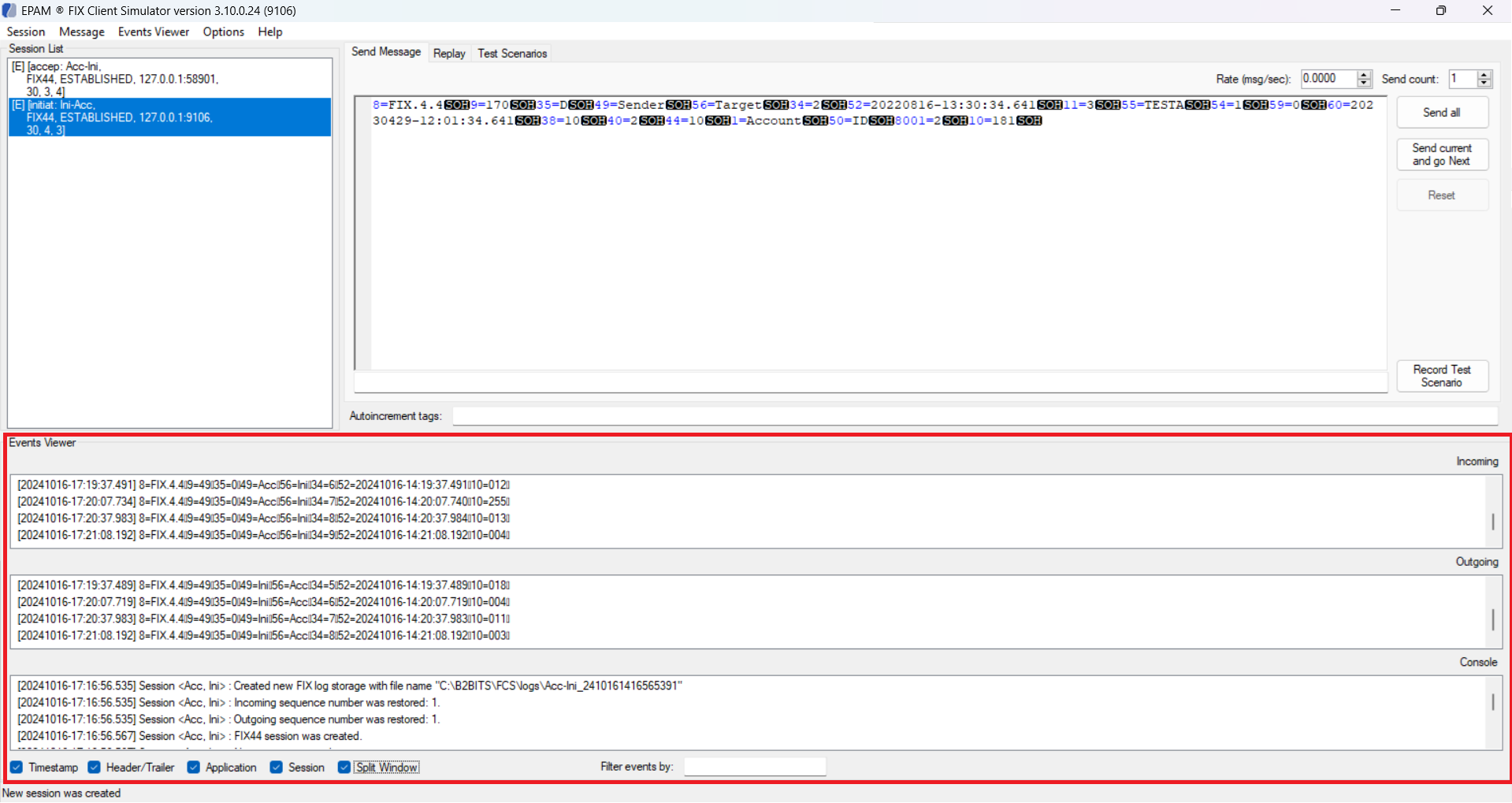

- Vizualize all incoming and outgoing messages in separate tabs,
filter them by message type
|
Automated testing |
-
Create test scenarios manually
-
Record test scenarios automatically
-
Edit,
rename and
remove existing test scenarios
-
Run test scenarios for selected FIX sessions
|

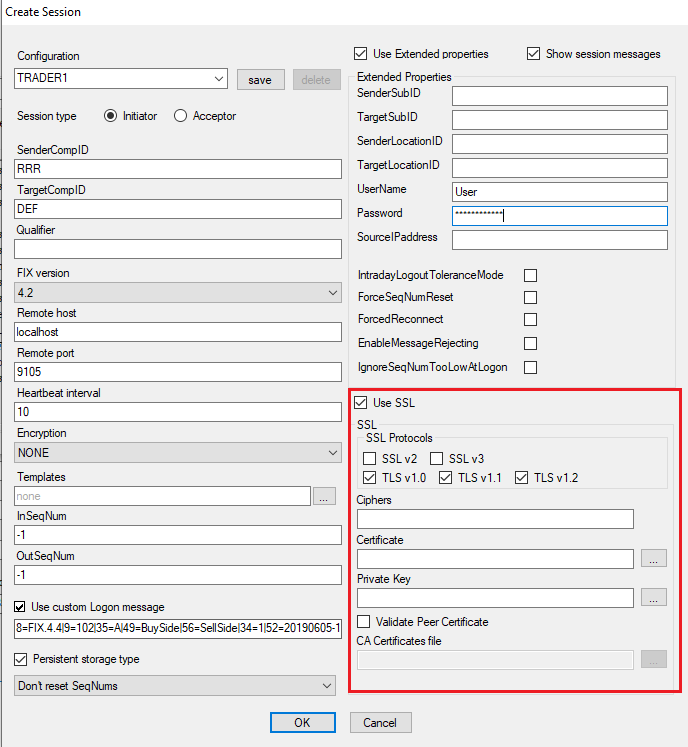

Security |
- SSLv2 and SSLv3 support
- SSL
encryption support
- TLSv1.0, TLSv1.1 and TLSv1.2 support

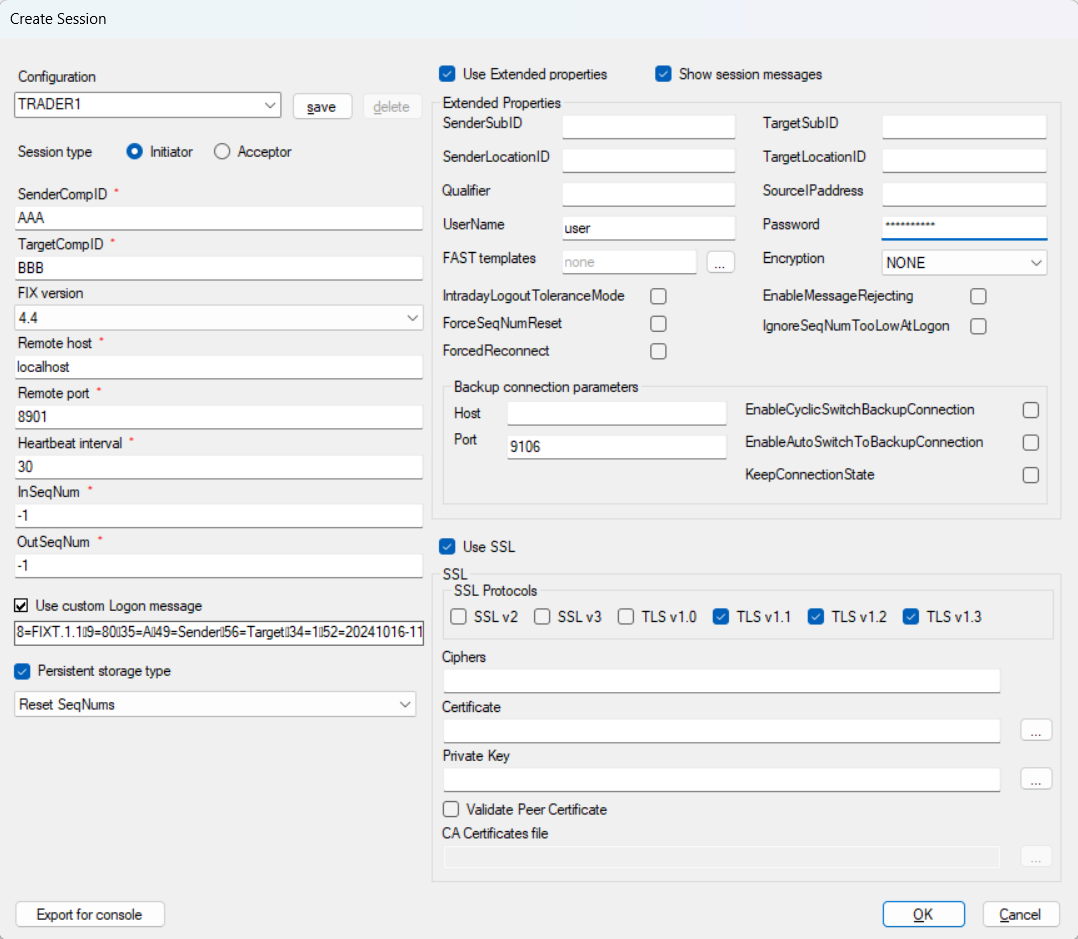

- FIX session authorization by username and password from Logon
message
- Incoming connections auto-accept to simplify development and
testing
|
Packaging |
FIX Client Simulator is delivered as a simple zip archive.
The package contains:
- Executable binaries
- FIX messages samples
- Example of a custom dictionary
|
Context-Driven Workflow
Simulation
FIX Client Simulator provides the ability to
simulate context-driven workflows defined by FIX standard
specification.
For example, FCS allows to autogenerate Order Cancel Request
(35=F) or Order Cancel/Replace Request (35=G) message based on
outgoing New Order Single (35=D) or incoming Execution Report
(35=8) message.

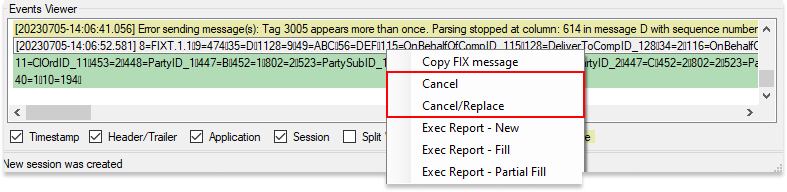

The particular outgoing New Order Single (35=D) or incoming
Execution Report (35=8) message can be right-clicked on in the the
Events Viewer section and two actions from the context menu will be
available:
- Cancel - to autogenerate Order Cancel Request
(35=F) message.
- Cancel/Replace - to autogenerate and send
Order Cancel/Replace Request (35=G) message.

Also, there is an ability to autogenerate New, Partially
Filled, and Filled Execution Report (35=8) message based on
incoming New Order Single (35=D) message.

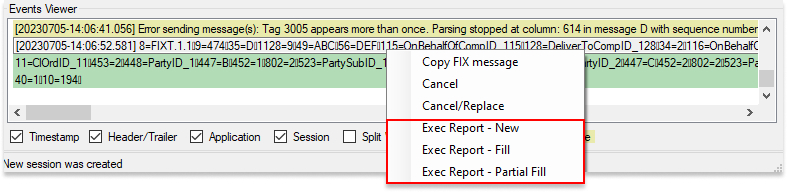

The particular incoming New Order Single (35=D) message can be
right-clicked on in the the Events Viewer section and three actions
from the context menu will be available:
- Exec Report - New - to autogenerate
Execution Report New(35=8) message.
- Exec Report - Fill - to autogenerate Execution
Report Filled (35=8) message.
- Exec Report - Partial Fill - to autogenerate
Execution Report Partially Filled (35=8) message.

The new message will be autogenerated in accordance with the FIX
dictionary file (associated with the session) using the tag=value
pairs from the initial FIX message.

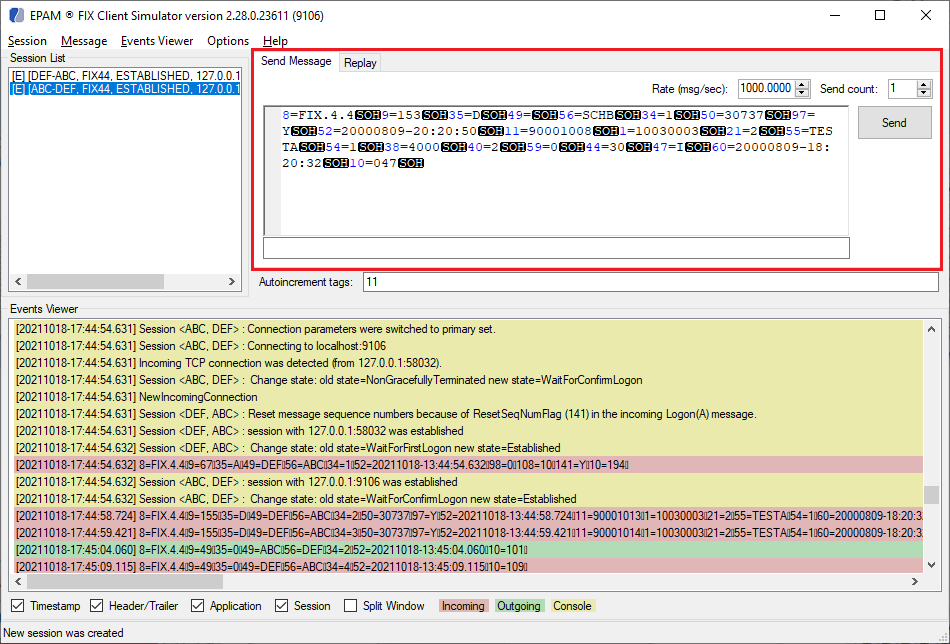

The autogenerated messages will be added to the Send Message
section.
Automated Testing

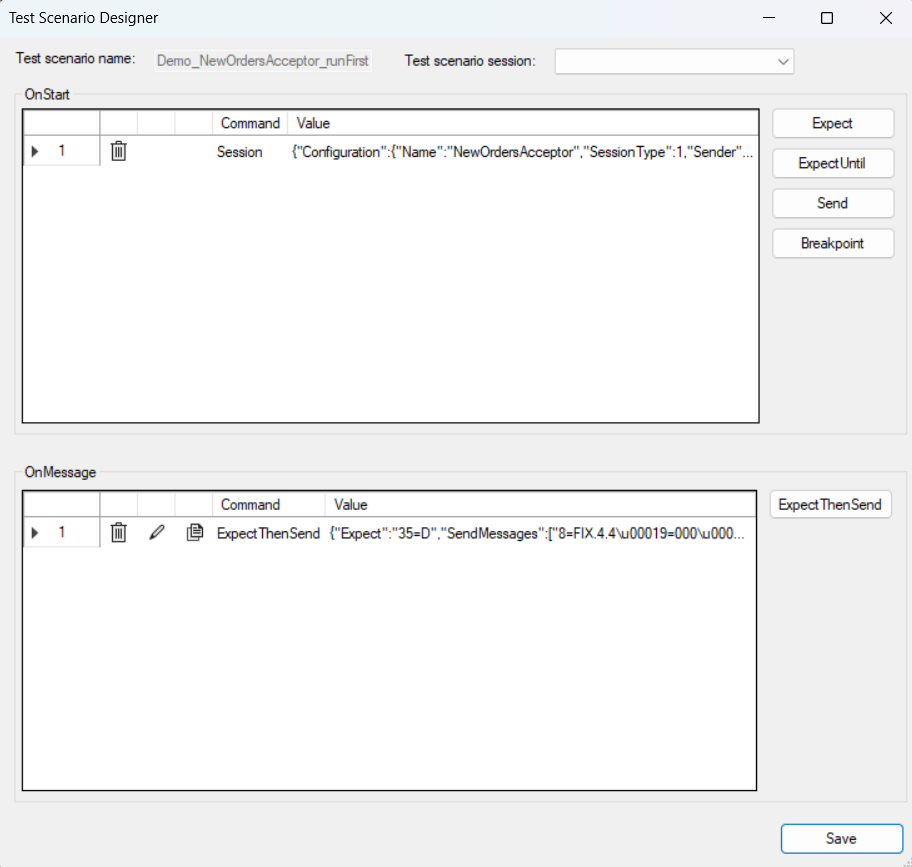

FIX Client Simulator allows users to create, edit and run
repitable test scenarios for selected FIX sessions.
There are two ways to add new test
scenario:

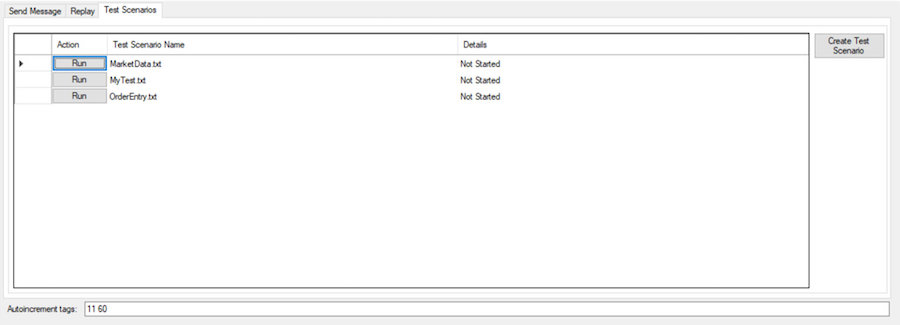

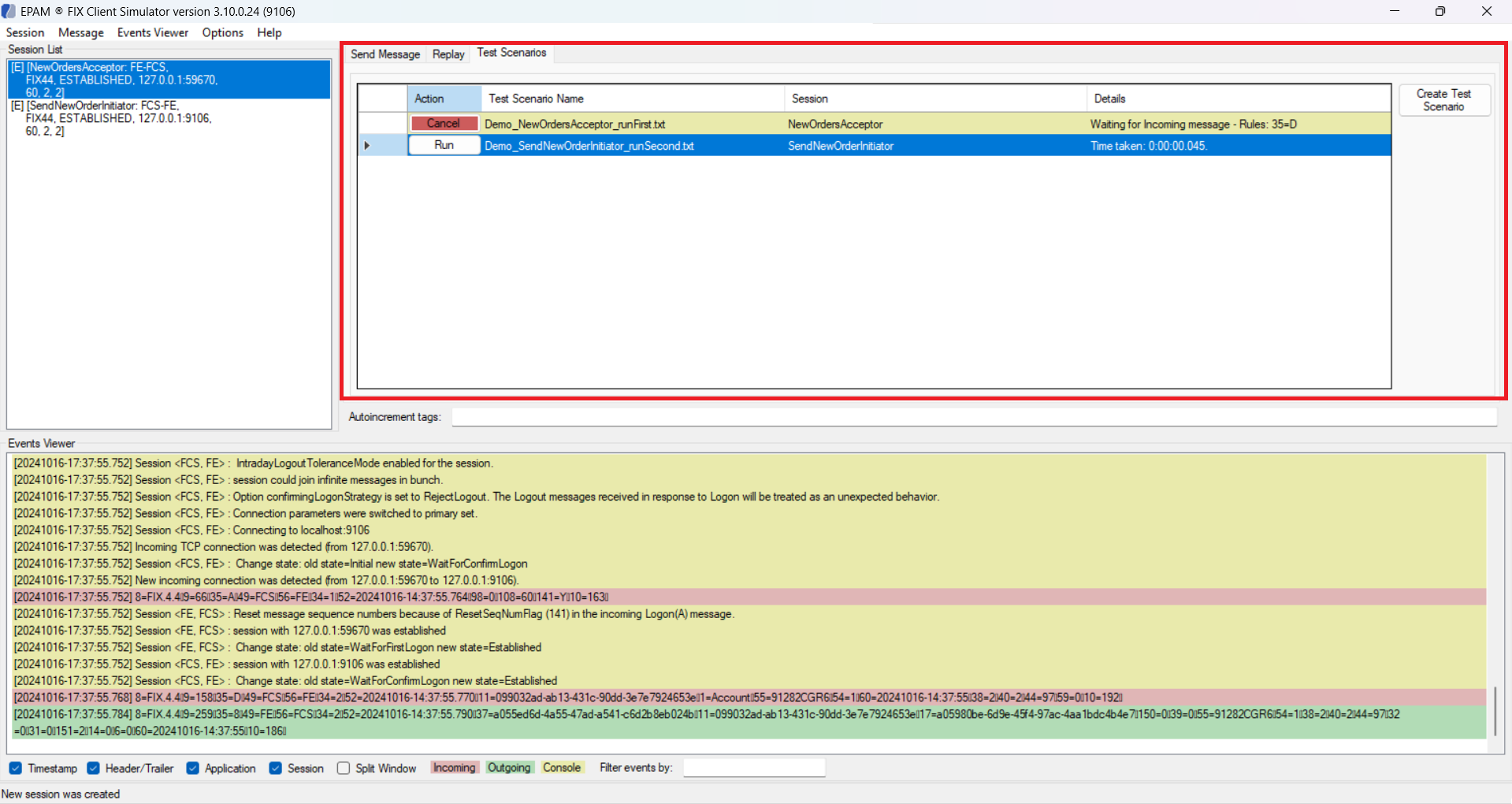

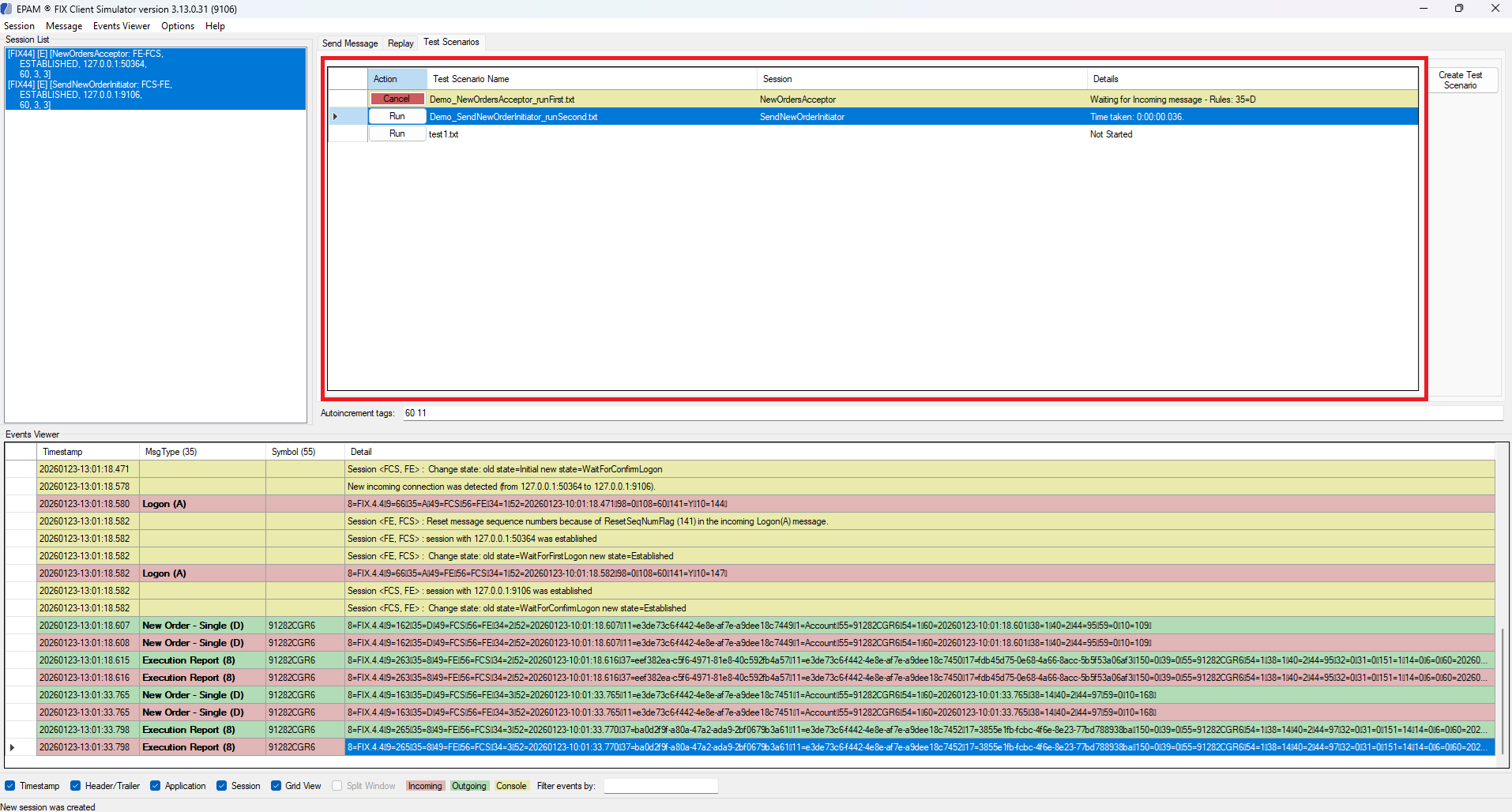

The list of existing test scenarios is displayed in the Test
Scenarios tab on the main application screen.
![[FCS] Test Scenarios Tab](/media/293001/test_scenarios_tab.jpg)
Created scenarios can be
edited,
renamed, or
removed.
If the scenario was tested successfully, then the corresponding
line in the Test Scenarios table will be highlighted in
green. Time taken to run the test will be displayed in the
Details column.
If the scenario was tested unsuccessfully, then the
corresponding line in the Test Scenarios table will be highlighted
in red. Time taken to run the test and error description will be
displayed in the Details column.
Platforms
Operating
System |
- Windows 7
- Windows 8
- Windows 10
- Windows 11
- Windows Server 2008 R2
- Windows Server 2012
- Windows Server 2016
- Ubuntu Linux 20.04
- Ubuntu Linux 22.04
- Rocky Linux 8
|
Please contact us at sales@b2bits.com to obtain the free
trial version of FIX Client Simulator or for any additional
information.
