FIXICC H2 is a new generation FIX Integrated Control Center application available via a web browser. It is designed to administer, configure and monitor the FIXEDGE line of products, including standalone FIX engines and clusters of FIX engines.

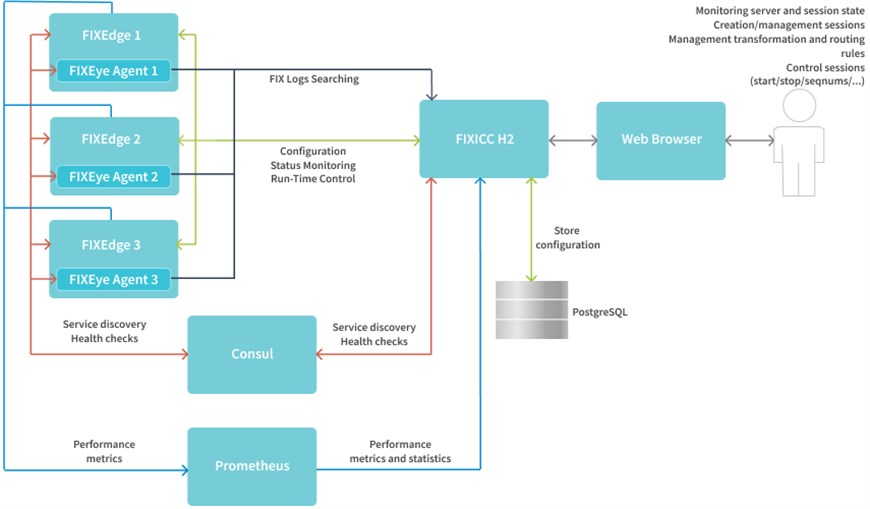

FIXICC H2 services FIX engines requests to get a session configuration and rules for messages processing, sends commands and receives information via the REST API for FIXEDGE control. The tool uses a database to store and manage FIX session configurations and schedules.

FIXICC H2 is extendible and customizable:

  • designed to work with ODBC compliant database management systems;
  • can be configured manually or using Consul Service Discovery;
  • allows customizing the UI theme.
FIX Integrated Control Center H2

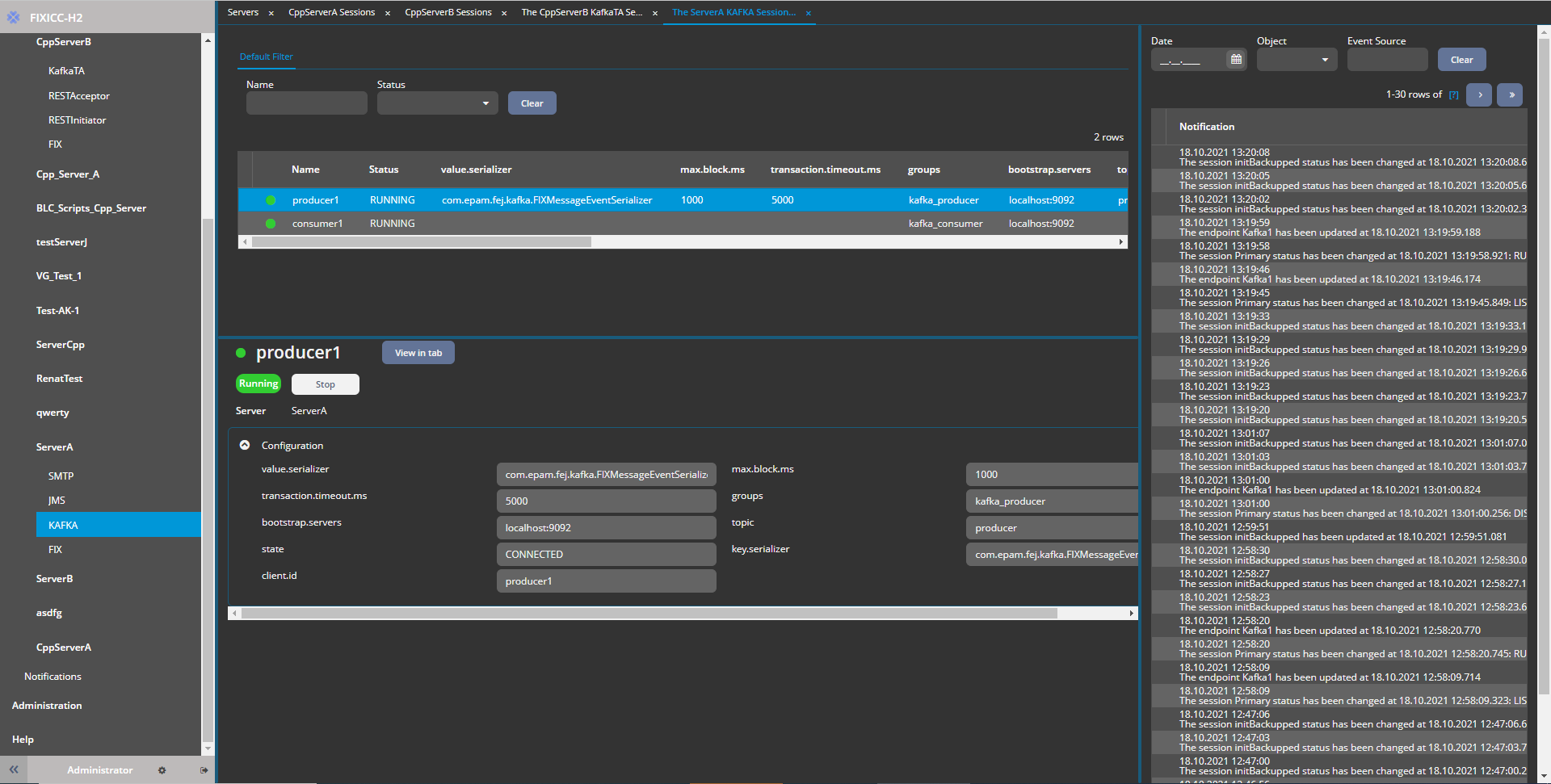

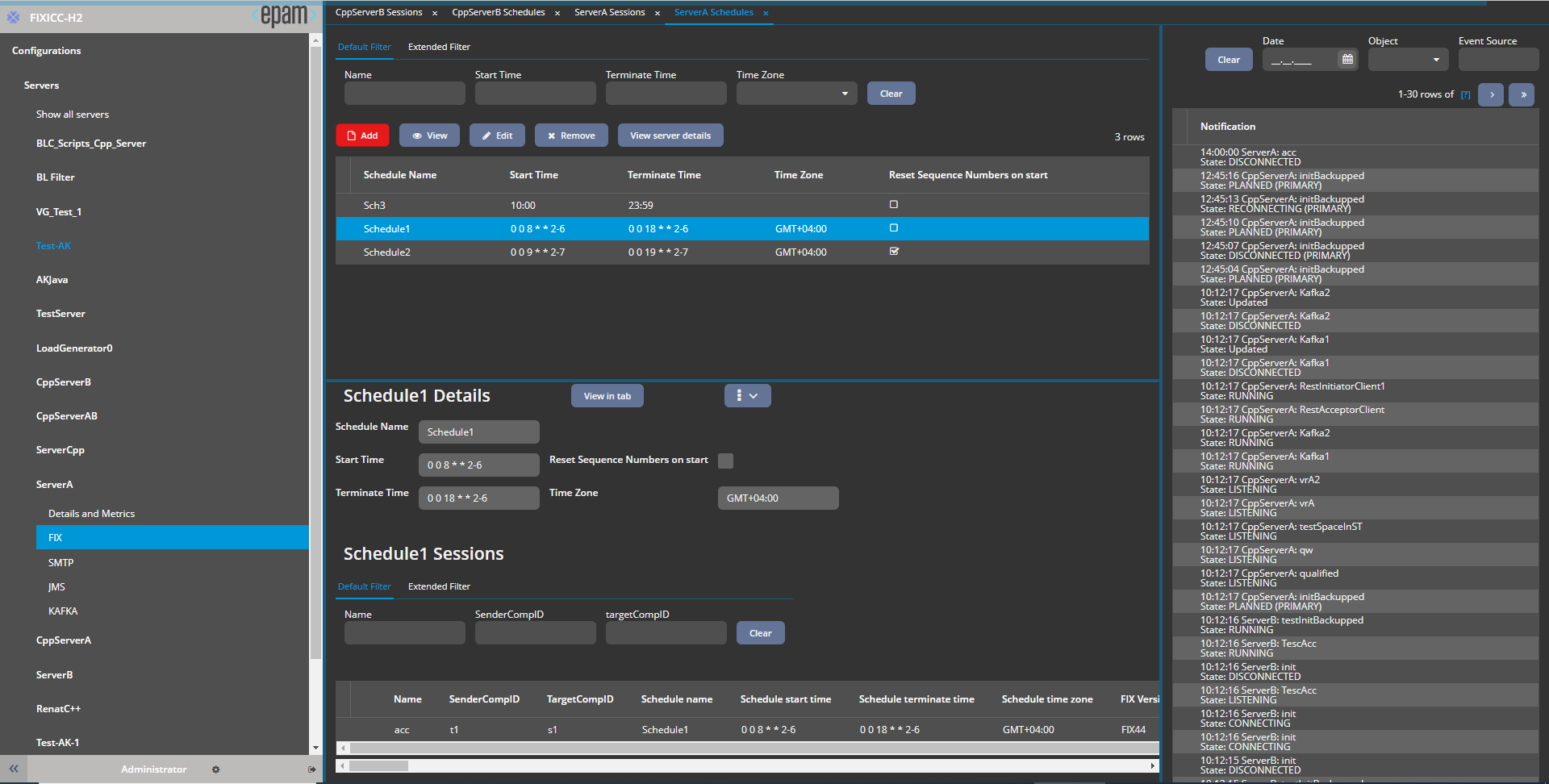

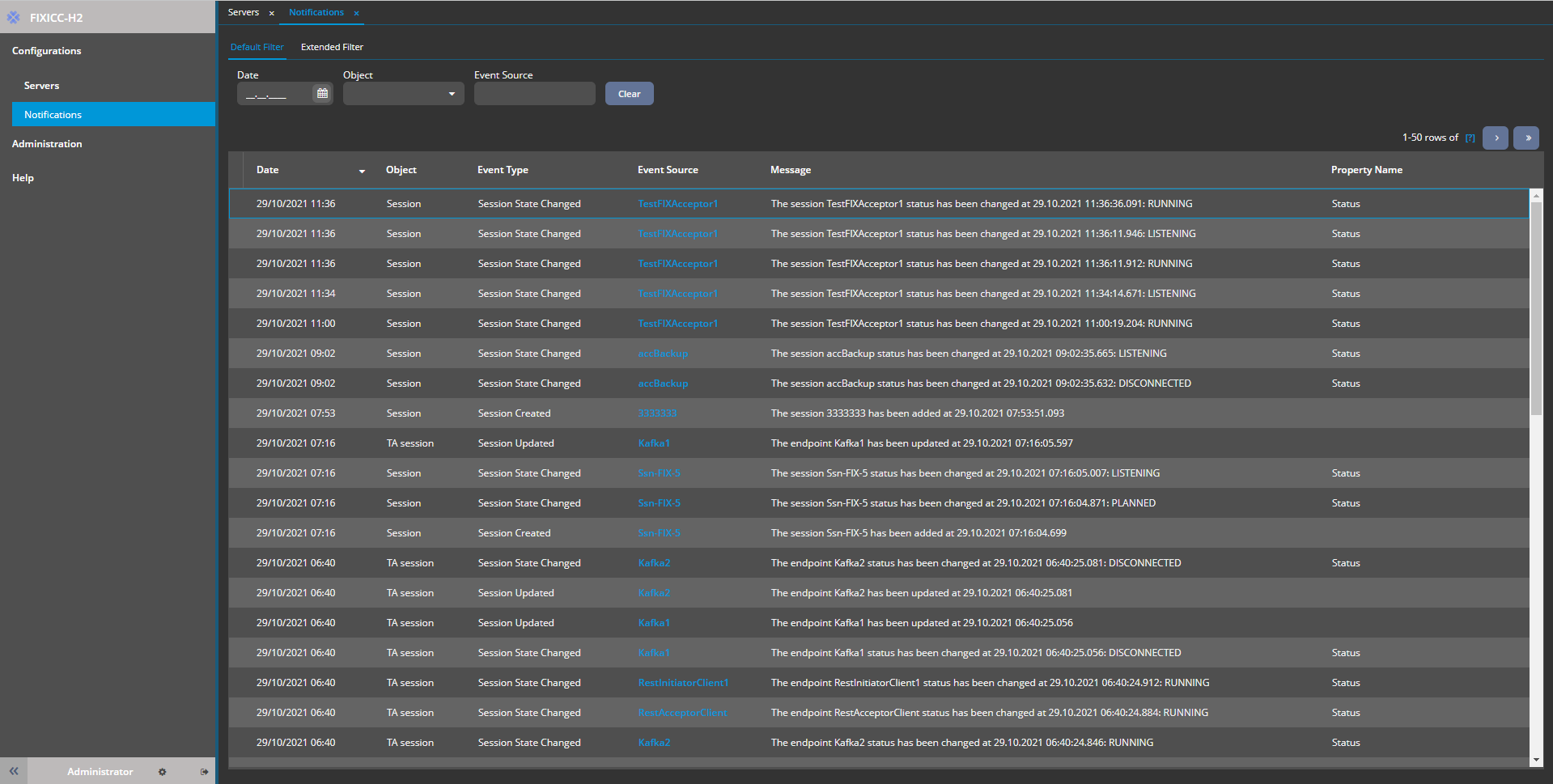

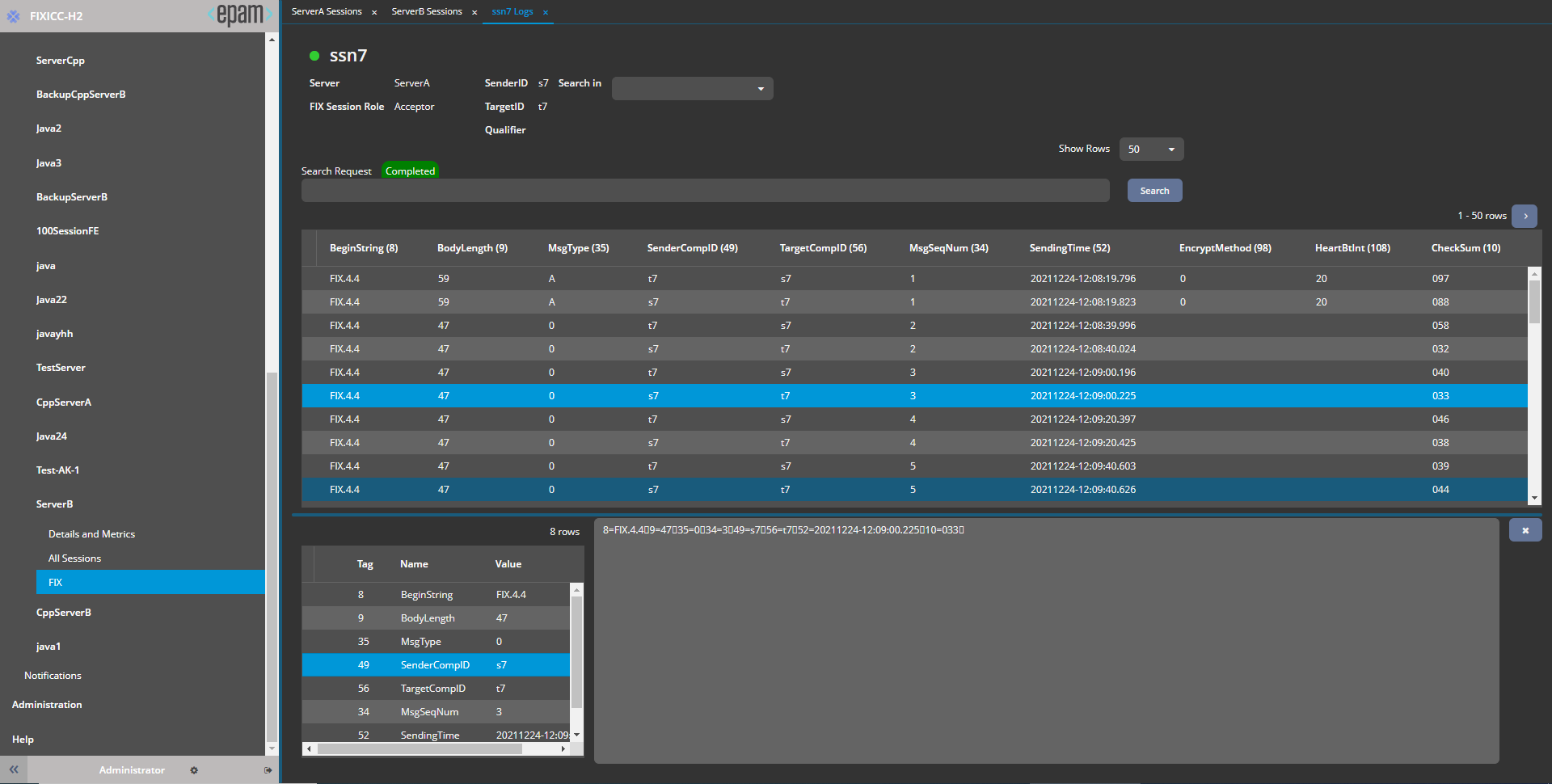

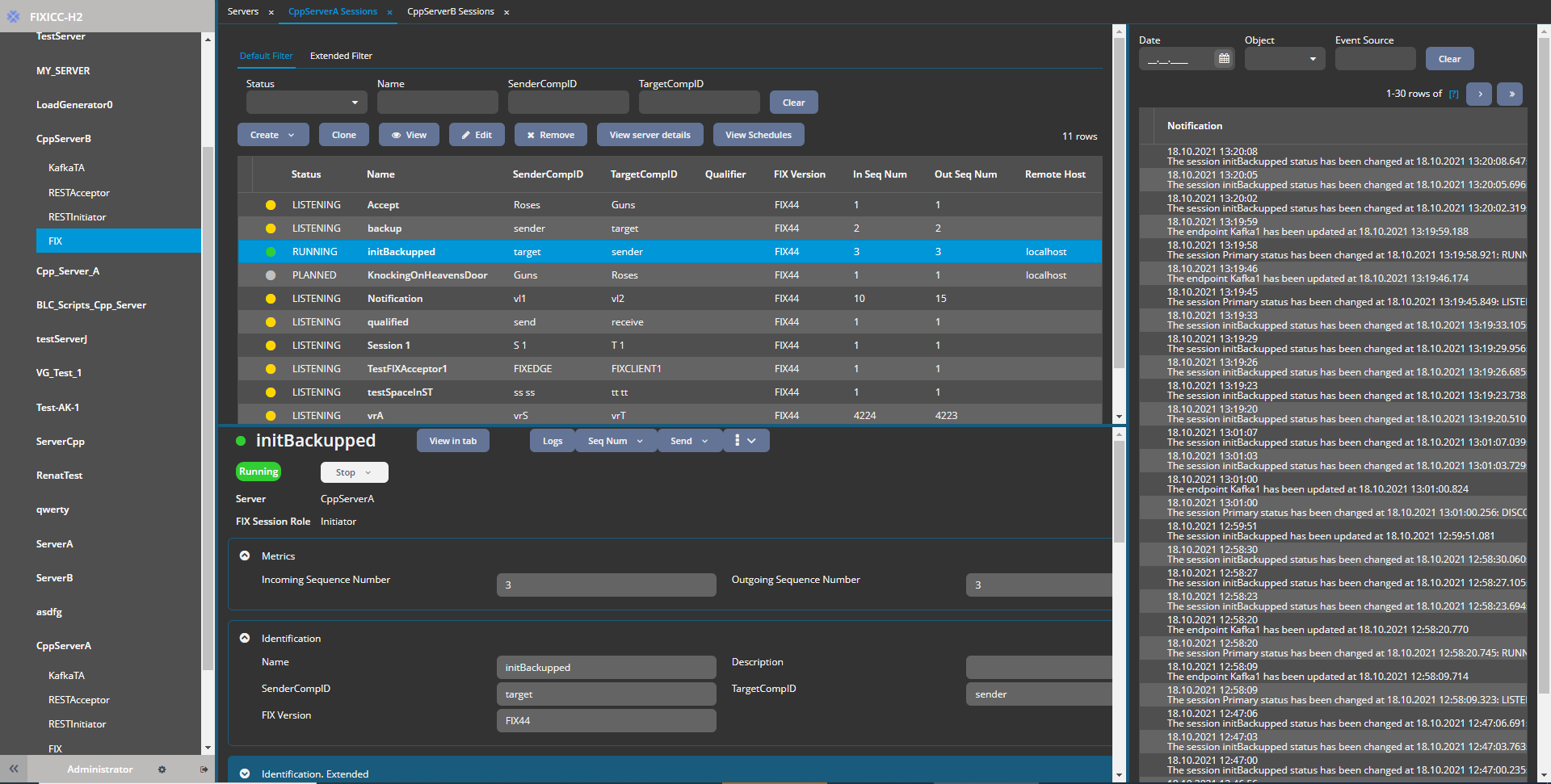

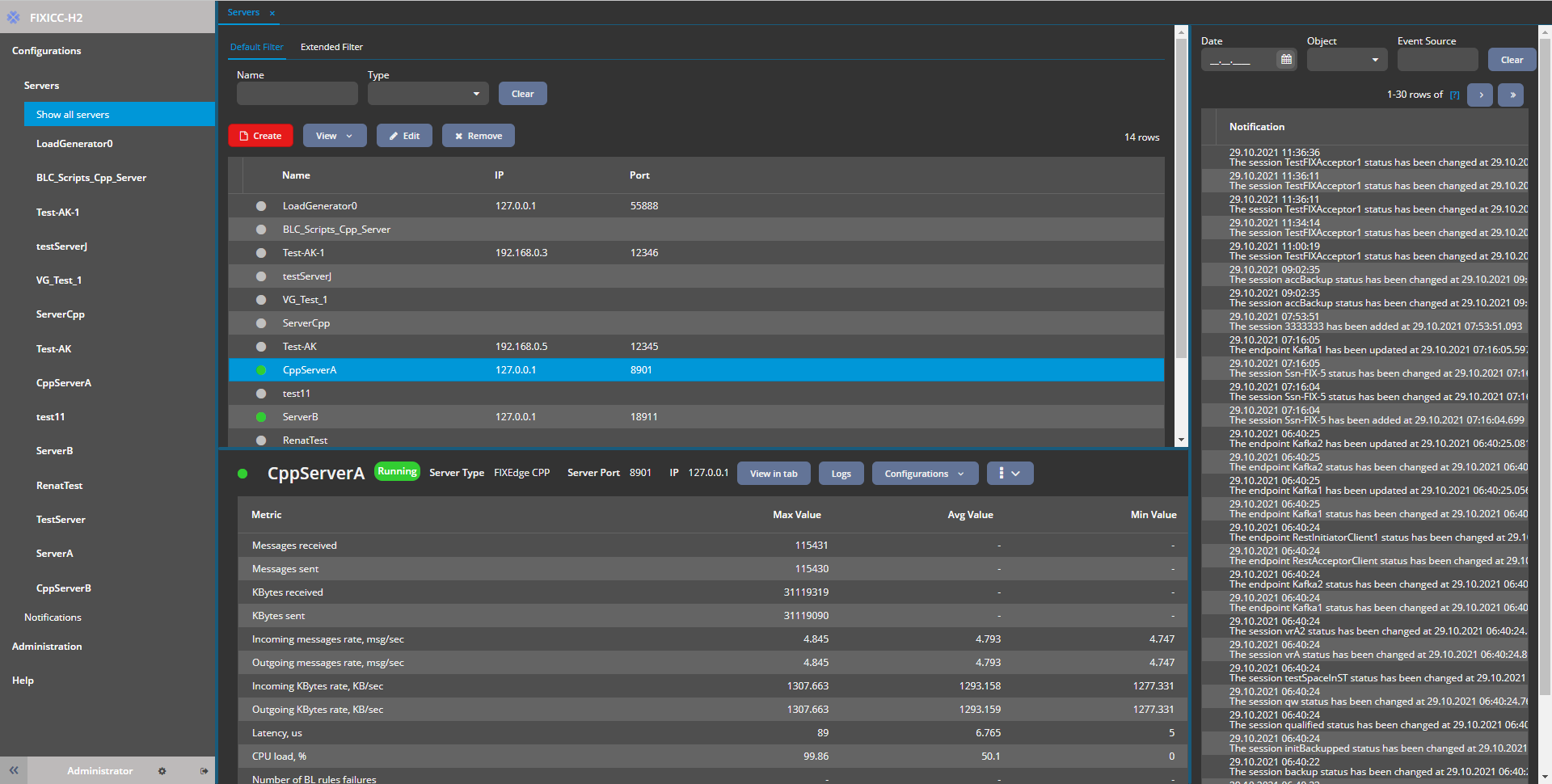

FIXICC H2 Notifications FIXICC H2 UI Concepts FIXICC H2 TA Monitoring FIXICC H2 Log View FIXICC H2 Server ManagementUI SCHEDULES


Features:

  • Presentation and User Interface:
    • ability to view multiple sessions in one window (table view)
    • ability to view critical events in the always on widget
    • ability to browse FIX message logs and search for messages
    • configurable set of monitorable parameters (ability to choose and reorder required columns either in table view or in a list of attributes for a list view)
    • color indication for session and server state
  • Monitoring:
    • multiple servers
    • server status
    • session statuses in real time
    • session Configuration Sync Status
    • notifications for status changes
    • notifications from applications, alert messages
    • session statistics and parameters
    • the actual FIX session configuration and dynamic state
    • FIX session and transport adapters statuses in real time
  • Control:
    • start a session
    • stop a session
    • restart a working session
    • change session configuration
    • change/reset sequence numbers for a session
    • send Heartbeat, Test Request, Resend Request or any custom message to a session
    • switch a session from backup to primary
    • send any custom  message to a session
  • Configuring:
    • create and delete server configuration
    • edit server parameters
    • create, delete session configuration
    • edit session parameters
    • configure notifications for events such as session/server state changes
    • configure a set of monitorable parameters
    • schedule session's start and stop time
    • configure and apply business rules on the fly using XML for FIXEdge C++ and Groovy or Groovy DSL for FIXEdge Java
    • schedule the sessions
    • Managing java scripts for business rules
    • LDAP integration for user directory services and SAML support for Single Sign-On
    • View FIX logs
  • Hardware:
    • physical or virtual server with:
    • 2 core CPU
    • 2Gb RAM
    • 40G storage

FIXICC H2 is included as a standard component in the FIXEdge package.

FIXICC H2

Documentation

FIXICC H2 User Guide
