FIXEdge C++ 6.14.0 Performance
Approach
Benchmarks were run against two different versions of
FIXEdge C++ (6.14.0 and 6.13.0), and the results were compared in
order to detect possible regressions.
Single Session Echo Scenario
One acceptor session is configured on the FIXEdge C++
side.
One initiator session is configured on the client application
side.
The process:
The client application connects to the FIXEdge C++ instance and
sends 1000000 FIX 4.2 messages at a rate of 50000 messages per
second.
FIXEdge C++ receives the messages and matches them to the same
session using business layer logic.
FIXEdge C++ responds to the client application with the same
message via the same TCP/IP connection (the same session).
The client application collects the response time
histogram.
The process is repeated 3 times for each FIXEdge C++ release
version.
The response time measured
by the client application is the difference between timestamps:
t1 - timestamp is taken right before sending a message to the
socket
t2 - timestamp is taken right after receiving the same message
from the socket (from FIXEdge)
So the round-trip time formula is: RTT = t2 - t1 and the
measurement unit is microseconds.

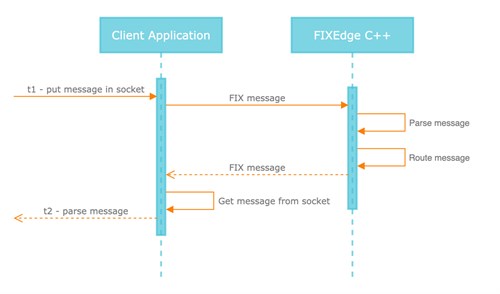

The test scenario diagram:
Two
Sessions With Conversion Scenario
Two acceptor sessions are configured on the FIXEdge C++
side.
Two initiator sessions are configured on the client application
side.
The process:
The client application connects to the FIXEdge C++ instance
(establishes session №1) and sends 1000000 FIX 4.2 messages with a
rate of 50000 messages per second.
The client application connects to the FIXEdge instance
(establishes session №2) and starts to receive a message from
another FIXEdge C++ session.
FIXEdge C++ receives the messages sent to it from the client
application (session №1).
FIXEdge C++ uses Business Layer logic to route the message to
another session and converts it from FIX 4.2 to FIX 4.4
protocol.
FIXEdge C++ responds to the client application with the
converted message via another TCP/IP connection (session №2).
The client application collects the response time
histogram.
The process is repeated 3 times for each FIXEdge C++ release
version.
The round-trip time measured by benchmark is the difference
between timestamps:
t1 - timestamp is taken right before sending a message to the
socket
t2 - timestamp is taken right after receiving the same message
from the socket (from FIXEdge).
The round-trip time formula is: RTT = t2 - t1 and the
measurement unit is microseconds.

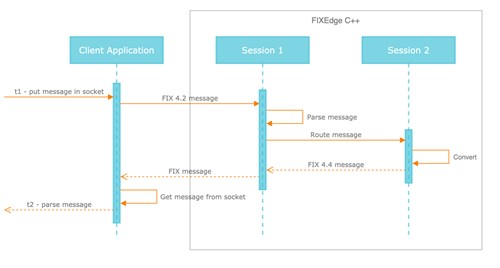

The test scenario diagram:
Results
The performance of the FIXEdge C++ 6.14.0 version is the
same as the performance of the previous FIXEdge 6.13.0
version.
There is no performance degradation.

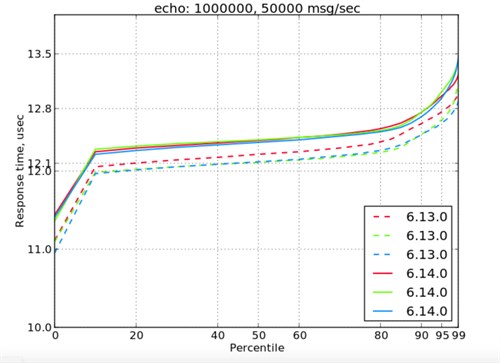

Single
Session Echo Scenario

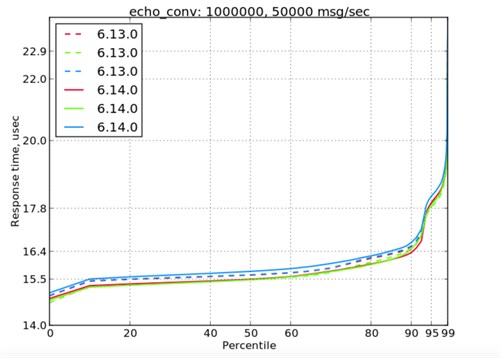

Two Sessions With Conversion
Scenario
Product Version
OS
Testing Date
Test Results
FIXEdge C++ 6.14.0
Linux
Aug 19, 2022
