Send Latency

Common Test Environment

  • Intel Core i7-4960X 3.6 GHz/6core/1.5+15Mb
  • MB ASUS P9X79 WS 2хGbLAN
  • DDR-III DIMM 16Gb KIT 2*8Gb <PC3-15000>
  • SSD 256 Gb SATA 6Gb / s Samsung 840 PRO Series <MZ-7PD256>
  • 2 Tb SATA-III Seagate Barracuda <ST2000DM001> 7200 rpm 64Mb
  • Windows 7 Enterprise x64
  • Java 1.8.0_05 (Java HotSpot™ 64-bit Server VM)

This benchmark measures the time required for processing outgoing message inside engine. The starting point of measure is a point before calling to FIXSession.sendMessage() (t1) and the end point is just before the sending packet with serialized message to socket(t2).

Performance Lab. Send Latency. FIX Antenna Java 2.12.12

File-based Mode
(Persistent Session)
Test Results Latency Distribution
(Persistent Session)
  • Validation: off
  • Storage Factory Type: file
  • Message Queue type: file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 4.8
  • Max latency (µs): 8471.7
  • Average latency (µs): 6.1
  • Median (µs): 5.7
  • Standard deviation(µs): 9.8
  • Values distribution:
    • [4.8 µs; 15.9 µs] : 99.58%
    • [4.8 µs; 25.6 µs] : 99.60%
    • [4.8 µs; 35.4 µs] : 99.68%
IX Antenna Java 2.12.12 for Windows. Send latency. File-based mode
Memory-based Mode (Transient Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory
  • Message Queue type: memory
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 0.3
  • Max latency (µs): 61.7
  • Average latency (µs): 0.6
  • Median (µs): 0.6
  • Standard deviation(µs): 0.2
  • Values distribution:
    • [0.3 µs; 0.8 µs] : 73.33%
    • [0.3 µs; 1.0 µs] : 99.34%
    • [0.3 µs; 1.1 µs] : 99.92%
Send latency. Memory-based mode. FIX Antenna Java 2.12.12
Memory-mapped File-based Mode (Persistent Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory mapped file
  • Message Queue type: memory mapped file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 0.9
  • Max latency (µs): 5960.3
  • Average latency (µs): 1.2
  • Median (µs): 1.1
  • Standard deviation(µs): 8.5
  • Values distribution:
    • [0.9 µs; 9.7 µs] : 99.29%
    • [0.9 µs; 18.2 µs] : 99.99%
    • [0.9 µs; 26.7 µs] : 99.99%

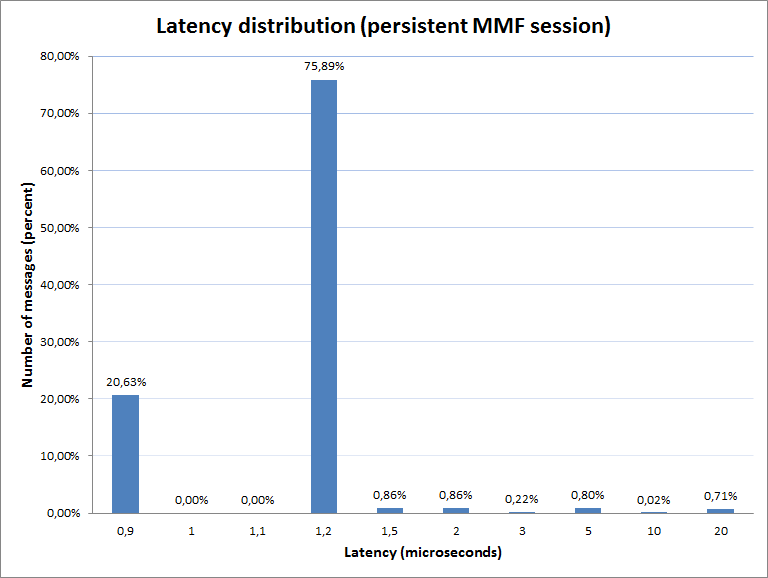

Send latency.Memory-mapped file-based mode. FIX Antenna Java 2.12.12

Receive Latency

Common Test Environment

  • Intel Core i7-4960X 3.6 GHz/6core/1.5+15Mb
  • MB ASUS P9X79 WS 2хGbLAN
  • DDR-III DIMM 16Gb KIT 2*8Gb <PC3-15000>
  • SSD 256 Gb SATA 6Gb / s Samsung 840 PRO Series <MZ-7PD256>
  • 2 Tb SATA-III Seagate Barracuda <ST2000DM001> 7200 rpm 64Mb
  • Windows 7 Enterprise x64
  • Java 1.8.0_05 (Java HotSpot™ 64-bit Server VM)

This benchmark measures the time required for processing of the received packet and providing FIX message to user. The starting point of measure is a point right after receiving data from socket (t3) and the end point is inside user callback (t4).

Performance Lab. Receive Latency. FIX Antenna Java 2.12.12

File-based Mode
(Persistent Session)
Test Results Latency Distribution
(Persistent Session)
  • Validation: off
  • Storage Factory Type: file
  • Message Queue type: file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 1.1
  • Max latency (µs): 22.2
  • Average latency (µs): 1.9
  • Median (µs): 2,0
  • Standard deviation(µs): 0.3
  • Values distribution:
    • [1.6 µs; 2.3 µs] : 68.86%
    • [1.3 µs; 2.6 µs] : 94.17%
    • [1.1 µs; 2.9 µs] : 99.92%

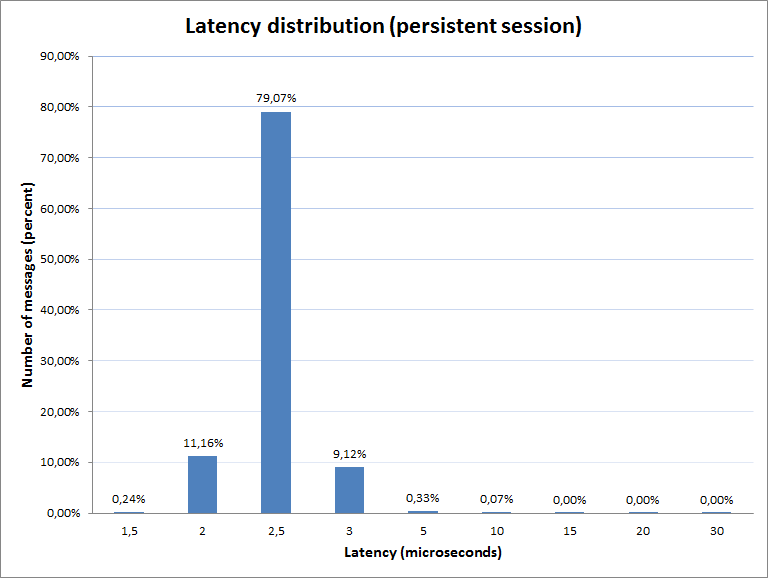

Receive latency. File-based mode. FIX Antenna Java 2.12.12
Memory-based Mode (Transient Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory
  • Message Queue type: memory
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 1.1
  • Max latency (µs): 38.1
  • Average latency (µs): 1.8
  • Median (µs): 1.7
  • Standard deviation(µs): 0.3
  • Values distribution:
    • [1.6 µs; 2.1 µs] : 80.66%
    • [1.3 µs; 2.4 µs] : 99.56%
    • [1.1 µs; 2.7 µs] : 99.92%

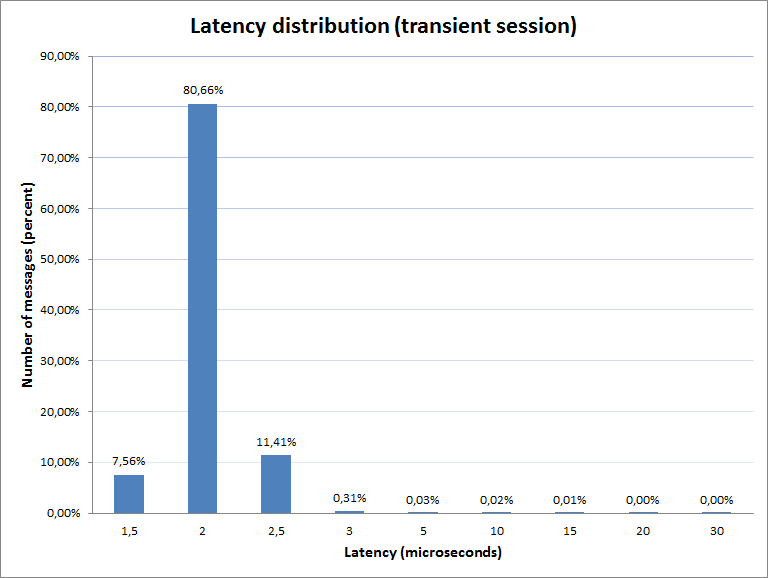

Receive latency. Memory-based mode. FIX Antenna Java 2.12.12
Memory-mapped File-based Mode (Persistent Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory mapped file
  • Message Queue type: memory mapped file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 1.4
  • Max latency (µs): 29.0
  • Average latency (µs): 2.3
  • Median (µs): 2.3
  • Standard deviation(µs): 0.2
  • Values distribution:
    • [2.0 µs; 2.5 µs] : 79.07%
    • [1.8 µs; 2.7 µs] : 97.33%
    • [1.6 µs; 3.0 µs] : 99.35%

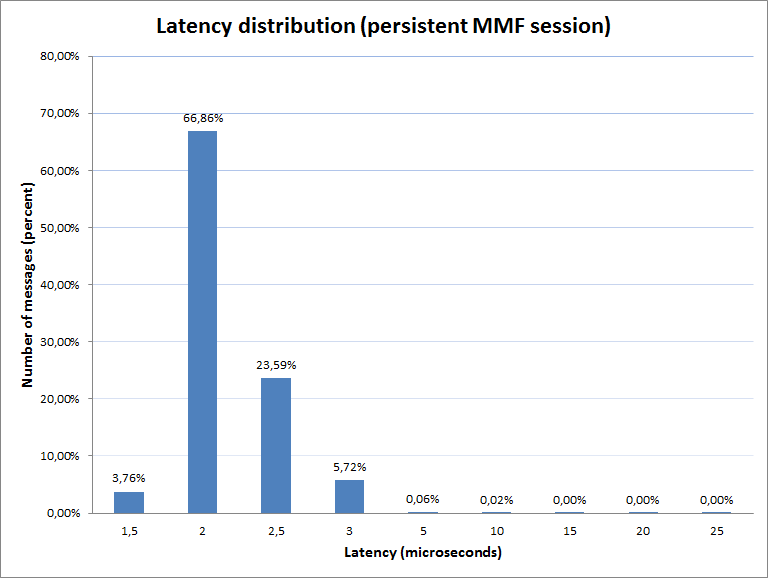

Receive latency. Memory-mapped file-based mode. FIX Antenna Java 2.12.12

Receive and Send Latency

Common Test Environment

  • Intel Core i7-4960X 3.6 GHz/6core/1.5+15Mb
  • MB ASUS P9X79 WS 2хGbLAN
  • DDR-III DIMM 16Gb KIT 2*8Gb <PC3-15000>
  • SSD 256 Gb SATA 6Gb / s Samsung 840 PRO Series <MZ-7PD256>
  • 2 Tb SATA-III Seagate Barracuda <ST2000DM001> 7200 rpm 64Mb
  • Windows 7 Enterprise x64
  • Java 1.8.0_05 (Java HotSpot™ 64-bit Server VM)

This benchmark measures the time required for processing incoming message and sending the answer. The starting point of measure is a point right after receiving data from socket (t3) and the end point is just before sending the packet with answer to counterparty (t2).

Performance Lab. Receive and Send Latency. FIX Antenna Java 2.12.12

File-based Mode
(Persistent Session)
Test Results Latency Distribution
(Persistent Session)
  • Validation: off
  • Storage Factory Type: file
  • Message Queue type: file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 10.5
  • Max latency (µs): 5451.5
  • Average latency (µs): 11.6
  • Median (µs): 11.4
  • Standard deviation(µs): 6.6
  • Values distribution:
    • [10.5 µs; 18.2 µs] : 99.57%
    • [10.5 µs; 24.8 µs] : 99.65%
    • [10.5 µs; 31.4 µs] : 99.65%

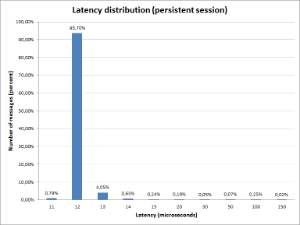

Receive and send latency. File-based mode. FIX Antenna Java 2.12.12
Memory-based Mode (Transient Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory
  • Message Queue type: memory
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 4.6
  • Max latency (µs): 72.0
  • Average latency (µs): 4.9
  • Median (µs): 4.8
  • Standard deviation(µs): 0.3
  • Values distribution:
    • [4.6 µs; 5.2 µs] : 97.43%
    • [4.6 µs; 5.5 µs] : 99.25%
    • [4.6 µs; 5.7 µs] : 99.39%

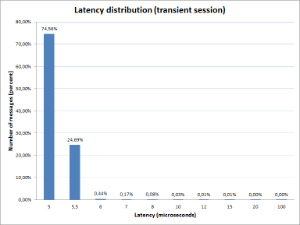

FIXAJ_2.12_Receive-SendMemory
Memory-mapped File-based Mode (Persistent Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory mapped file
  • Message Queue type: memory mapped file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 5.1
  • Max latency (µs): 5940.9
  • Average latency (µs): 5.6
  • Median (µs): 5.4
  • Standard deviation(µs): 8.4
  • Values distribution:
    • [5.1 µs; 14.0 µs] : 99.31%
    • [5.1 µs; 22.4 µs] : 99.97%
    • [5.1 µs; 30.8 µs] : 99.99%
Receive and send latency. Memory-mapped file-based mode. FIX Antenna Java 2.12.12

Send and Receive Latency

Common Test Environment

  • Intel Core i7-4960X 3.6 GHz/6core/1.5+15Mb
  • MB ASUS P9X79 WS 2хGbLAN
  • DDR-III DIMM 16Gb KIT 2*8Gb <PC3-15000>
  • SSD 256 Gb SATA 6Gb / s Samsung 840 PRO Series <MZ-7PD256>
  • 2 Tb SATA-III Seagate Barracuda <ST2000DM001> 7200 rpm 64Mb
  • Windows 7 Enterprise x64
  • Java 1.8.0_05 (Java HotSpot™ 64-bit Server VM)

This benchmark measures a delay between sending message from one side and receiving it by another. Also this time includes the system delay for passing data through localhost loop. The starting point of measure is a point before calling to FIXSession.sendMessage() by sender (t1) and the end point is inside the user callback on the acceptor side (t4).

Performance Lab. Send and Receive Latency. FIX Antenna Java 2.12.12

File-based Mode
(Persistent Session)
Test Results Latency Distribution
(Persistent Session)
  • Validation: off
  • Storage Factory Type: file
  • Message Queue type: file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 13.7
  • Max latency (µs): 24414.7
  • Average latency (µs): 15.7
  • Median (µs): 15.1
  • Standard deviation(µs): 24.9
  • Values distribution:
    • [13.7 µs; 40.6 µs] : 99.32%
    • [13.7 µs; 65.6 µs] : 99.65%
    • [13.7 µs; 90.5 µs] : 99.92%
Send and receive latency. File-based mode. FIX Antenna Java 2.12.12
Memory-based Mode (Transient Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory
  • Message Queue type: memory
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 7.1
  • Max latency (µs): 311.5
  • Average latency (µs): 8.4
  • Median (µs): 8.2
  • Standard deviation(µs): 1.5
  • Values distribution:
    • [7.1 µs; 9.9 µs] : 98.07%
    • [7.1 µs; 11.4 µs] : 99.86%
    • [7.1 µs; 12.8 µs] : 99.36%

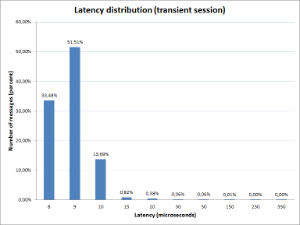

Send and receive latency. Memory-based mode. FIX Antenna Java 2.12.12
Memory-mapped File-based Mode (Persistent Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory mapped file
  • Message Queue type: memory mapped file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): true
  • Min latency (µs): 6.5
  • Max latency (µs): 5930.1
  • Average latency (µs): 9.7
  • Median (µs): 9.4
  • Standard deviation(µs): 10.8
  • Values distribution:
    • [6.5 µs; 20.5 µs] : 99.20%
    • [6.5 µs; 31.3 µs] : 99.92%
    • [6.5 µs; 42.1 µs] : 99.93%

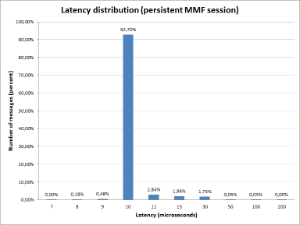

Send and receive latency. Memory-mapped file-based mode. FIX Antenna Java 2.12.12

Throughput

Common Test Environment

  • Intel Core i7-4960X 3.6 GHz/6core/1.5+15Mb
  • MB ASUS P9X79 WS 2хGbLAN
  • DDR-III DIMM 16Gb KIT 2*8Gb <PC3-15000>
  • SSD 256 Gb SATA 6Gb / s Samsung 840 PRO Series <MZ-7PD256>
  • 2 Tb SATA-III Seagate Barracuda <ST2000DM001> 7200 rpm 64Mb
  • Windows 7 Enterprise x64
  • Java 1.8.0_05 (Java HotSpot™ 64-bit Server VM)

Performance Lab. Throughput. FIX Antenna Java 2.12.12

Mode Settings Test Results

File-based (Persistent Session)

  • Validation: off
  • Stogate Factory Type: file
  • Message Queue type: file
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): false
  • Throughput (msgs/sec): 68135
Memory-based (Transient Session)
  • Validation: off
  • Stogate Factory Type: memory
  • Message Queue type: memory
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): false
  • Throughput (msg/sec): 293789
MMF-based (Persistent Session)
  • Validation: off
  • Stogate Factory Type: memory
  • Message Queue type: memory
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): false
  • Throughput (msg/sec): 68078
