FIX Antenna Java 2.4.15 for Windows XP

Common Test Environment

  • OS: Windows XP Professional SP3
  • Java: version 1.6.0_21 (Java HotSpot™ Server VM)
  • Version: FIX Antenna Java 2.4.15
  • Test execution date: Jul 29th, 2010
  • Source code: MeasureInternalLatencyBM.java
  • CPU: Intel Core 2 Duo E6550 2.33GHz
  • RAM: 3Gb
  • Hard drive: 120Gb, 8Mb, 7200RPM
  • Network card: 1Gbit
File-based Mode
(Persistent Session)
Test Results Latency Distribution
(Persistent Session)
  • Validation: off
  • Storage Factory Type: file
  • Message Queue type: persistent
  • Message Queue Size: 1
  • Min latency (µs): 28
  • Max latency (µs): 535
  • Average latency (µs): 39
  • Median (µs): 38
  • Standard deviation(µs): 10
  • Values distribution:
    • [29 µs; 49 µs] : 99.37%
    • [29 µs; 59 µs] : 99.55%
    • [29 µs; 69 µs] : 99.60%
  • Measurement results

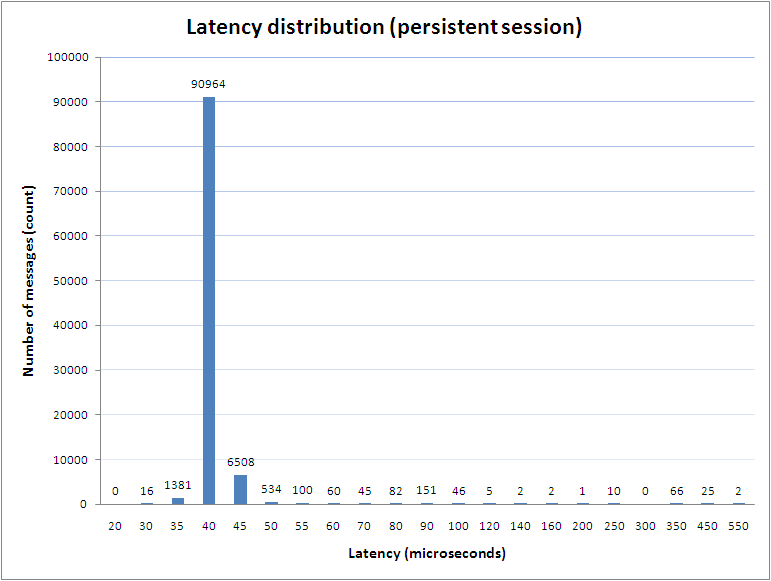

Latency Distribution (Persistent Session)

View larger image

Memory-based Mode (Transient Session) Test Results Latency Distribution
(Transient Session)
  • Validation: off
  • Storage Factory Type: memory
  • Message Queue type: memory
  • Message Queue Size: 1
  • Min latency (µs): 7
  • Max latency (µs): 341
  • Average latency (µs): 10
  • Median (µs): 10
  • Standard deviation(µs): 7
  • Values distribution:
    • [13 µs; 7 µs] : 99.65%
    • [13 µs; 7 µs] : 99.93%
    • [13 µs; 7 µs] : 99.94%
  • Measurement results

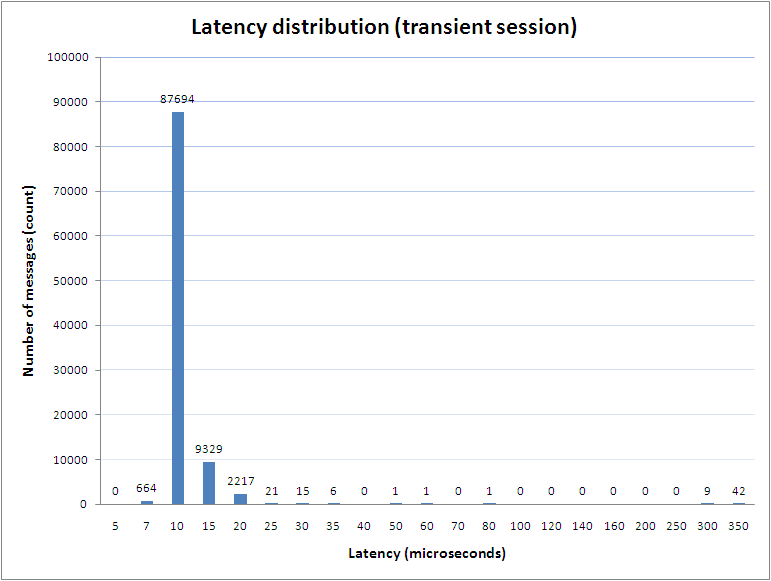

Latency Distribution (Transient Session)

View larger image

Common Test Environment

  • OS: Windows XP Professional SP3
  • Java: version 1.6.0_21 (Java HotSpot™ Server VM)
  • Version: FIX Antenna Java 2.4.15
  • Test execution date: Jul 29th, 2010
  • Source code: ThroughputTester.java
    SimpleServer.java
  • CPU: Intel Core 2 Duo E6550 2.33GHz
  • RAM: 3Gb
  • Hard drive: 120Gb, 8Mb, 7200RPM
  • Network card: 1Gbit
Mode Settings Test Results

File-based (Persistent Session)

  • Validation: off
  • Stogate Factory Type: file
  • Message Queue type: persistent
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): on
  • Sending time (ms): 34,137
  • Throughput (msg/sec): 29,294

Memory-based Mode (Transient Session)

  • Validation: off
  • Stogate Factory Type: memory
  • Message Queue type: memory
  • Message Queue Size: unlimited
  • Nagle's algorithm (TCP_NODELAY): on
  • Sending time (ms): 7,818
  • Throughput (msg/sec): 127,910
